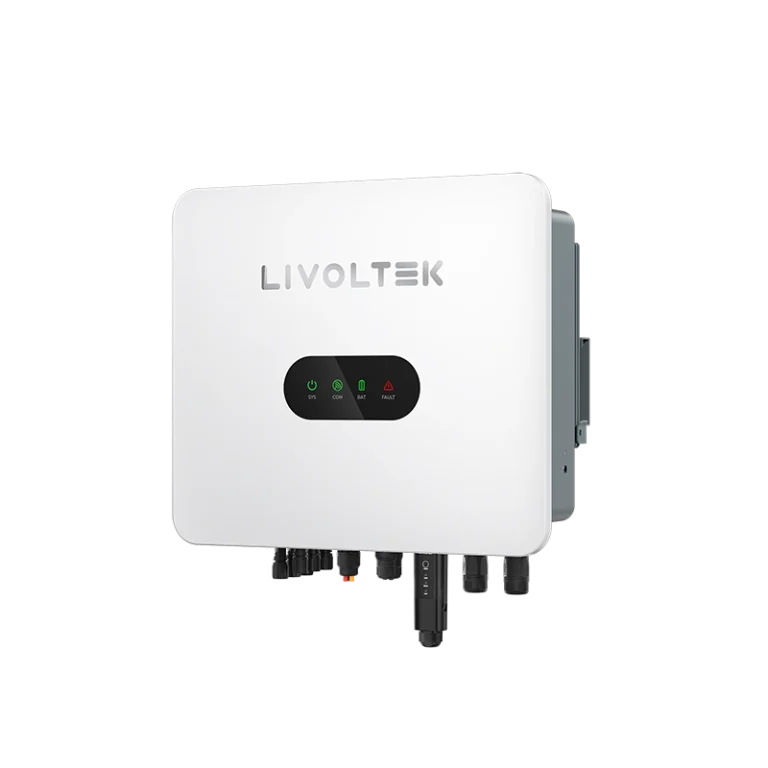

Hybrid Inverter

THREE PHASE:
HP3-5K/6K/8K/10K/12K D2
HP3-5K/6K/8K/10K/12K/15K L2

As the core of the energy storage solution, LIVOLTEK three phase hybrid inverter offers flexible and social able solutions for both residential and commercial applications.

With the ability of scalable battery storage, the high-voltage inverter facilitate powerful energy backup and also present high self-consumption with optimized built-in EMS to reduce energy cost.

High Performance

● 200% DC input oversizing
● 200% overload for backup loads
● Seamless switch for backup mode

Flexible Application

● Supports parallel function
● 100% unbalanced output
● Compatible with generator

Smart Management

● Peak shaving mode
● Support half-wave loads
● Remote control and upgrade

Safe and Reliable

● AC & DC SPD type II
● AFCI function optional
● Touch-free, one-click communication

HYBRID INVERTER

HP3-5K D2


Max. PV Input Power MPPT Voltage Range Max.PV Current	10000Wp 150-950V 16A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	5000W 3W + N + PE, 380V, 400V, 415V 7.6A
Nominal EPS Power	5000W
Max. Efficiency	97.90%
Battery Type	Lithium
Dimension (WHD) Weight	540470210 26kg

HYBRID INVERTER

HP3-6K D2


Max. PV Input Power MPPT Voltage Range Max.PV Current	12000Wp 150-950V 16A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	6000W 3W + N + PE, 380V, 400V, 415V 9.1A
Nominal EPS Power	6000W
Max. Efficiency	97.90%
Battery Type	Lithium
Dimension (WHD) Weight	540470210 26kg

HYBRID INVERTER

HP3-8K D2


Max. PV Input Power MPPT Voltage Range Max.PV Current	16000Wp 150-950V 16A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	8000W 3W + N + PE, 380V, 400V, 415V 12.1A
Nominal EPS Power	8000W
Max. Efficiency	98.00%
Battery Type	Lithium
Dimension (WHD) Weight	540470210 26kg

HYBRID INVERTER

HP3-10K D2


Max. PV Input Power MPPT Voltage Range Max.PV Current	20000Wp 150-950V 32A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	10000W 3W + N + PE, 380V, 400V, 415V 15.2A
Nominal EPS Power	10000W
Max. Efficiency	98.00%
Battery Type	Lithium
Dimension (WHD) Weight	540470210 26kg

HYBRID INVERTER

HP3-12K D2


Max. PV Input Power MPPT Voltage Range Max.PV Current	24000Wp 150-950V 32A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	12000W 3W + N + PE, 380V, 400V, 415V 18.2A
Nominal EPS Power	12000W
Max. Efficiency	98.00%
Battery Type	Lithium
Dimension (WHD) Weight	540470210 26kg

HYBRID INVERTER

HP3-15K T2


Max. PV Input Power MPPT Voltage Range Max.PV Current	30000Wp 150-950V 32A/32A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	15000W 3W + N + PE, 380V, 400V, 415V 22.8A
Nominal EPS Power	15000W
Max. Efficiency	98.10%
Battery Type	Lithium
Dimension (WHD) Weight	595485235 38kg

HYBRID INVERTER

HP3-20K T2


Max. PV Input Power MPPT Voltage Range Max.PV Current	40000Wp 150-950V 32A/32A/16A
Nominal AC Power Nominal AC Voltage Max.AC Current	20000W 3W + N + PE, 380V, 400V, 415V 30.4A
Nominal EPS Power	20000W
Max. Efficiency	98.10%
Battery Type	Lithium
Dimension (WHD) Weight	595485235 38kg

HYBRID INVERTER

HP3-25K T2


Max. PV Input Power MPPT Voltage Range Max.PV Current	50000Wp 150-950V 32A/32A/32A
Nominal AC Power Nominal AC Voltage Max.AC Current	25000W 3W + N + PE, 380V, 400V, 415V 37.9A
Nominal EPS Power	25000W
Max. Efficiency	98.20%
Battery Type	Lithium
Dimension (WHD) Weight	595485235 38kg

HYBRID INVERTER

HP3-30K T2


Max. PV Input Power MPPT Voltage Range Max.PV Current	60000Wp 150-950V 32A/32A/32A
Nominal AC Power Nominal AC Voltage Max.AC Current	30000W 3W + N + PE, 380V, 400V, 415V 43.5A
Nominal EPS Power	30000W
Max. Efficiency	98.20%
Battery Type	Lithium
Dimension (WHD) Weight	595485235 38kg
