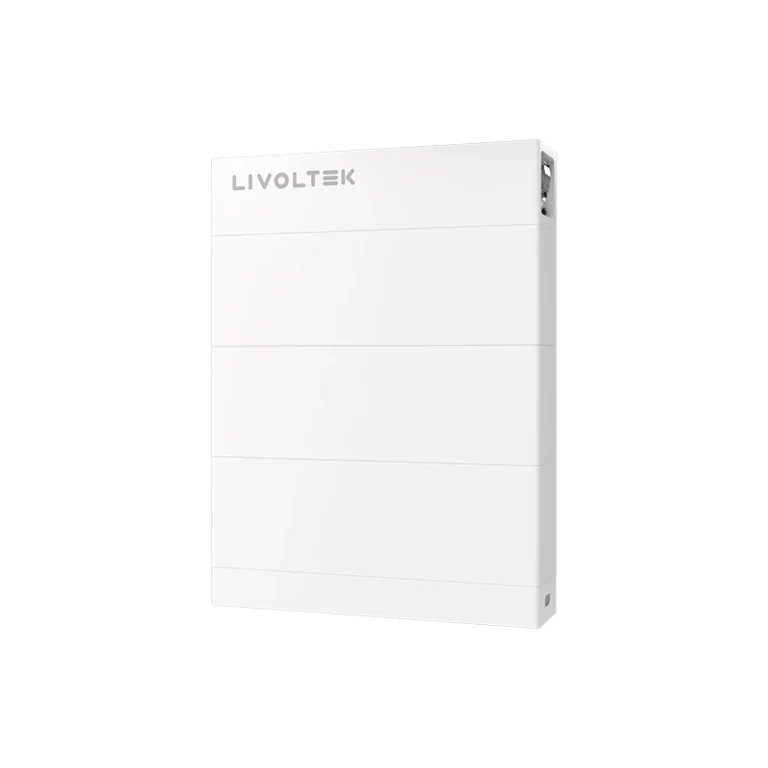

High-voltage Battery System

LITHIUM BATTERY SYSTEM: BHF-S10/S15/S20/S25/S30

The LIVOLTEK BHF HV Battery System is ideal for new installation of residential energy storage system.
With high energy density, high efficiency, modular stacking design and IP65 rating, BHF series battery is space-saving for indoor and outdoor installation. Up to 30 kWh system can fit your high energy demand.

IP65 supporting indoor and outdoor installation

Remote fault diagnosis, upgrade and maintenance

Reliable performance: high efficiency, high energy density and 90% DOD

Long cycle life and safest prismatic LFP batteries

Modular stacking design, easy installation, supporting floor and wall mounting

HIGH-VOLTAGE RESIDENTIAL BATTERY

BHF-S10


Nominal Voltage Number of Modules Total Energy Usable Energy Nominal Power Max.Charge/Discharge Current Dimension (WHD) Weight Ingress Protection	204.8 V 2 10.2 kWh 9.2 kWh 5.1 kW 48 A 870878.5208.7 mm 147 kg IP65

HIGH-VOLTAGE RESIDENTIAL BATTERY

BHF-S15


Nominal Voltage Number of Modules Total Energy Usable Energy Nominal Power Max.Charge/Discharge Current Dimension (WHD) Weight Ingress Protection	307.2 V 3 15.4 kWh 13.8 kWh 7.7kW 48 A 8701167208.7 mm 209 kg IP65

HIGH-VOLTAGE RESIDENTIAL BATTERY

BHF-S20


Nominal Voltage Number of Modules Total Energy Usable Energy Nominal Power Max.Charge/Discharge Current Dimension (WHD) Weight Ingress Protection	409.6 V 4 20.5 kWh 18.4 kWh 10.2 kW 48 A 8701455208.7 mm 271 kg IP65

HIGH-VOLTAGE RESIDENTIAL BATTERY

BHF-S25


Nominal Voltage Number of Modules Total Energy Usable Energy Nominal Power Max.Charge/Discharge Current Dimension (WHD) Weight Ingress Protection	512 V 5 25.6 kWh 23.0 kWh 12.8 kW 48 A 8701167208.7mm; 870778208.7mm 147kg+209kg=356kg IP65

HIGH-VOLTAGE RESIDENTIAL BATTERY

BHF-S30


Nominal Voltage Number of Modules Total Energy Usable Energy Nominal Power Max.Charge/Discharge Current Dimension (WHD) Weight Ingress Protection	614.4 V 6 30.7 kWh 27.6 kWh 15.4 kW 48 A 8701167208.7mm; 8701067208.7mm 209kg+209kg=418kg IP65
